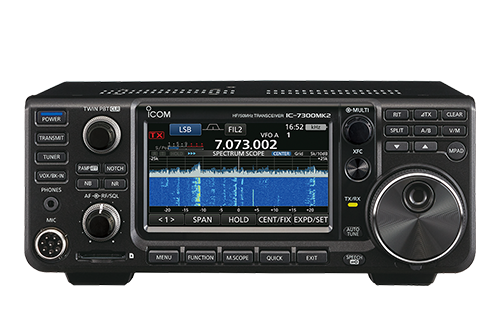

ICOM 7300 MK2 12 USA

$1 499.95

1st SHIPPMENT IS SOLD OUT!

GET ON THE LIST FOR SHIPPMENT #2

Out of stock, available for pre-order

Product Details

HF/50MHz TRANSCEIVER

IC-7300

USA Version

The Innovative HF Transceiver with High Performance Real-Time Spectrum Scope

The Innovative HF Transceiver
New technology is changing the way receivers are being designed, and the IC-7300 is an industry first as an RF Direct Sampling System is being used in an entry-level HF radio. The ability to digitize RF before various receiver stages reduces the inherent noise that is generated in the different IF stages of a radio. We feel the performance of the ‘7300 will far exceed your expectations for a radio considered entry-level.

Smoother FT8 Mode Operation with Constantly Evolving Firmware

The latest firmware offers smoother FT8 operation. One touch FT8 mode preset, Scroll mode, WLAN (Access Point) function and other updates are available.

PDF download

Firmware update

Class Leading Real-Time Spectrum Scope

The IC-7300’s real-time spectrum scope is class-leading in resolution, sweep speed and dynamic range. While listening to received audio, you can check the real-time spectrum scope and quickly move to an intended signal. When you first touch the scope screen around the intended signal, the touched part is magnified. A second touch of the scope screen changes the operating frequency and allows you to accurately tune.

Real-Time Spectrum Scope Specifications

* Number of pixels shown at the 60dB level, when receiving a signal.

High-Resolution Waterfall Function

The combination of the waterfall function and the real-time spectrum scope assists in maximum receive performance of the IC-7300 and increases QSO opportunities without missing weak signals. The waterfall function shows a change of signal strength over a period of time and allows you to find weak signals that may not be apparent on the spectrum scope.
Scroll mode automatically keeps the operating signal within the scope range.

Spectrum scope + Waterfall

VIDEO

Spectrum scope + Waterfall
(expand)

VIDEO

Zoom in

VIDEO

Audio Scope Function

The audio scope function can be used to observe various AF characteristics such as microphone compressor level, filter width, notch filter width and keying waveform in the CW mode. Either the transmit or receive audio can be displayed on the FFT scope with the waterfall function and the oscilloscope.

FFT scope/Oscilloscope + Waterfall

VIDEO

FFT scope/Oscilloscope

VIDEO

RF Direct Sampling System

The IC-7300 employs an RF direct sampling system. RF signals are directly converted to digital data and processed in the FPGA (Field-Programmable Gate Array), making it possible to simplify the circuit construction. This system is a leading technology making an epoch in amateur radio.

New "IP+" Function

The new "IP+" function improves 3rd order intercept point (IP3) performance. When a weak signal is received adjacent to strong interference, the AD converter is optimized against signal distortion.

Class Leading RMDR and Phase Noise Characteristics

The IC-7300's RMDR is improved to about 100 dB* (typical value) and Phase Noise characteristics are improved about 20 dB (at 2 kHz frequency separation) compared to the IC-7200. The superior Phase Noise characteristics reduce noise components in both receive and transmit signals.

*At 2 kHz frequency separation (received frequency: 14.2MHz, MODE: CW, IF BW: 500Hz)

15 Discrete Band-Pass Filters

Band-pass filters

The IC-7300 has 15 discrete RF bandpass filters. The RF signal is only passed through one of the bandpass filters, while any out of range signals are rejected. High Q factor coils are used to minimize the loss in the RF band-pass filters.

Built-In Automatic Antenna Tuner

Automatic antenna tuner

The antenna tuner memorizes its settings based on your transmit frequency, so that it can rapidly tune when you change operating bands. The Enforced Tuning function* allows a wide range of temporary antennas to be tuned.

* Do not use the Enforced Tuning function except in case of an emergency. Transmission power may be reduced.

Multi-Dial Knob for Smooth Operation

The combination of the multi-dial knob and the touch screen offers quick and smooth operation. When you push the multi-dial knob, menu items are shown on the right side of the display. You can select an item with a touch of the screen and adjust levels by turning the multi-dial knob.

Large Touch Screen Color TFT LCD

Touch screen interface

The large 4.3 inch color TFT touch LCD offers intuitive operation. Using the software keypad of the touch screen, you can easily set various functions and edit memory contents.

Band stacking register screen

Multi-function meter

Menu screen

Setting screen

Memory name input operation

VIDEO

Frequency input operation

VIDEO

One-Touch FT8 Mode Preset

Preset memory offers smooth FT8 mode operation. You can start FT8 mode operation only by selecting [FT8] from PRESET menu. Up to five preset memories can be stored.

Superior Sound Quality

To offer superior sound quality, a new speaker unit has been incorporated and is allocated dedicated space in the aluminum die-cast chassis.

Aluminum die-cast chassis

Newly designed speaker unit

SD Memory Card Slot for Saving Data

SD memory card slot
(The SD card is not included.)

The IC-7300 can store various content on an SD card such as received and transmitted audio, voice memories, RTTY/CW memories, RTTY decode logs and captured screen images. Personal and firmware update data can also be stored on the SD card for easy setting.

Rear Panel View

Other features

・ New HM-219 hand microphone supplied
・ A large and effective cooling fan system
・ A multi-function meter
・ 101 memory channels (99 regular, 2 scan edges)
・ Optional RS-BA1 IP remote control software
(the spectrum scope with the waterfall can be observed)
・ CW functions: Full break-in, CW reverse, CW auto tuning
