VHF/UHF DIGITAL TRANSCEIVER

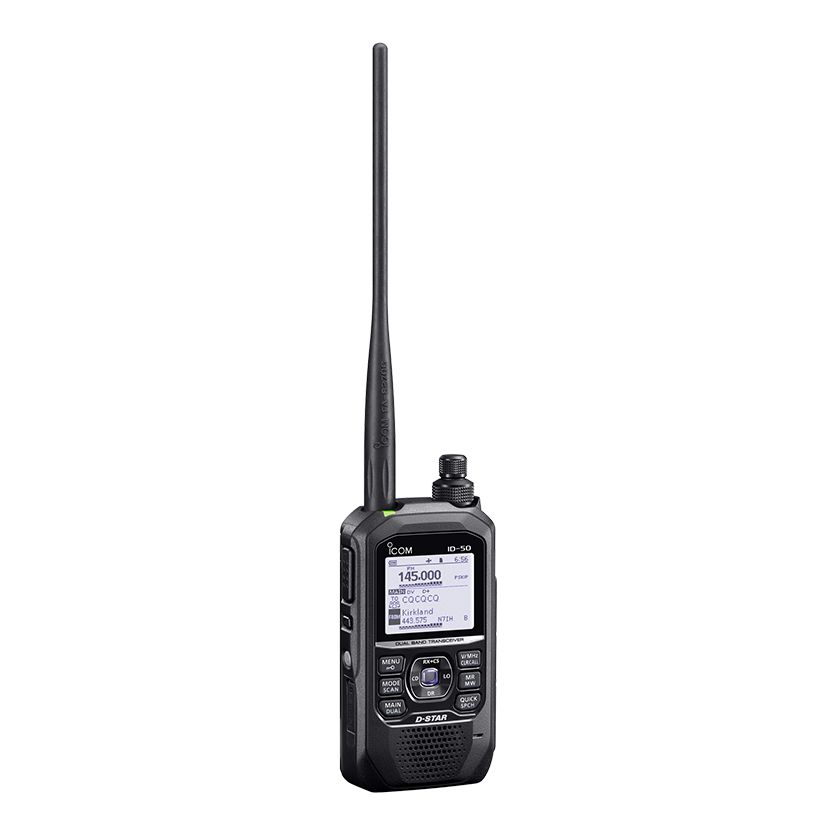

The ID-50A is a compact dual-bander (2m/70cm), making it the perfect on-the-go handheld. The easy D-STAR settings allow for a quick menu selection to call a friend locally or talk to regions around the world. Enhance QSO opportunities by taking advantage of various smart features.
The ID-50A is a compact VHF/UHF dual bander with both D-STAR (Digital Smart Technology for Amateur Radio) and FM dual modes. Connecting to the D-STAR network, you can call a friend in another city, or other regions around the world with the ID-50A. Smart functions such as Band Scope and Picture Sharing function enhance your QSO experience. Enjoy worldwide communications through D-STAR network.
The DR function makes communications using D-STAR repeaters easier and simple. Just selecting “FROM”(access repeater) and “TO” (destination), you can make QSO calls including Local Area call, Gateway call, and Simplex call. Combined with the GPS function, you can make selection of a local repeater available based on your location. In addition, the DR function supports reflector linking controls.
You can share pictures with each other in the DV mode. Photos on your Android™ devices can be edited and shared on the picture utility software, ST-ID50A. Utilizing windows PC through a microSD card or a USB cable is also available with the ST-ID50W. It is possible to check your pictures on the ID-50A display before sending it to others. Enjoy sharing pictures together with voice messages.
* Share Picture function requires the optional picture utility software ST-ID50A (on Google Play™) or ST-ID50W (Download from Icom website) and user supplied USB Type-C to USB Type-C cable.
Even in the area with no D-STAR repeaters, build your own internet gateway (using Terminal mode and Access Point mode*) to access the D-STAR network virtually anywhere. Building an Access Point is easy, by connecting your ID-50A to a PC or an Android™ device connected to the internet, you will be able to make another D-STAR radio user to communicate through the D-STAR network over the air.
• The RS-MS3W optional software (Download from Icom website) and user supplied USB Type-C to USB Type-C cable are required for Access Point mode. The RS-MS3A optional application software (Download on Google Play™) and user supplied USB Type-C to USB Type-C cable are required for Terminal mode.
• Terminal and Access Point modes are compatible with the Icom RS-RP3 Gateway Software. If your D-STAR repeater is running G1 or G2 software, ask the repeater administrator to contact the local Icom Distributor to upgrade the software.
• You need an Internet connection with an IPv4 Global IP address. If you use a cellular system, you need an IPv4 Global IP address assigned to your Android™ device.
The Band Scope with Waterfall display helps you to see band conditions in more detail and find active channels or an open frequency. The Waterfall display shows presence or absence of signals and even the signal level. The Band Scope mode is usable in the Center mode, Fixed mode, and Fixed scroll mode. You can enjoy efficient and smart operations with it.
By installing RS-MS1A App on your Android™ device, you can easily send text messages using your device’s keyboard to enter text. Also the RS-MS1A can remotely control the transceiver operation and set various functions from your Android™ device.
The ID-50A features superior IPX7* waterproofing and pro-grade construction. You can enjoy outdoor activities with it, even in harsh environments.
*1 m depth of water for 30 minutes.
A microSD card (up to 32 GB) can store QSO Recording, TX Voice Memory, pictures, QSOs and GPS log data. Moreover, Firmware upgrades, Repeater lists, and other personal settings can be saved and uploaded into the ID-50A radio.
The ID-50A has a USB Type-C™ port which is widely used in the industry. It is a multi-function USB port for charging as well as PC programming, read/write contents to the microSD card, Terminal/Access Point mode support, and CI-V control.
* Use a user-supplied USB cable for charging. USB PD is not supported.
Some optional accessories for the ID-52/ID-51/ID-31 series transceivers can be used for ID-50A. Moreover, the large capacity battery pack, BP-307 from the IC-705 is compatible with ID-50A as well. If you own these models, you can take advantage of sharing accessories.
*Battery packs only from IC-705
Frequencies, modes, and GPS logs can be saved in the CSV data format. Various kinds of QSO information can be downloaded and easily managed.
Built-in 750mW powerful audio output. The internal speaker provides louder and clearer audio.
BP-272 (supplied) | BP-307 (option) |
---|---|
8 hours | 12.5 hours |
*Approximate. Tx: Rx: standby = 1:1:8. Power save function ON. GPS OFF.
ID-50 | ID-52 | ID-51 Discontinued product |
ID-31 Discontinued product |
|
---|---|---|---|---|
Picture Sharing function | ✓ | ✓ | - | - |
Waterfall display | ✓ | ✓ | - | - |
BluetoothⓇ | - | ✓ | - | - |
IP rating | IPX7 | IPX7 | IPX7 | IPX7 |
Airband receiver | VHF | UHF/VHF | VHF | - |
microSD card slot | ✓ | ✓ | ✓ | ✓ |
GPS receiver | ✓ | ✓ | ✓ | ✓ |
USB port | ✓ (Type-C) | ✓ | - | - |
LCD | Monochrome | Color | Monochrome | Monochrome |
Audio | 750 mW | 750 mW | 400 mW | 400 mW |
Operating time* (with BP-272) | 8 hours | 7.25 hours | 7.5 hours | 9 hours |
Number of memory channels | 500 | 1000 | 500 | 500 |
Dimensions (W×H×D) |
58.0×111.0×27.9 mm, 2.3×4.4×1.2 in |
61.1×121.6×29.7 mm, 2.4×4.8×1.2 in |
58×105.4×26.4 mm, 2.28×4.15×1.04 in |
58×95×25.4 mm, 2.3×3.7×1 in |
Weight (approximate) | 300 g, 10.6 oz | 295 g, 11.6 oz | 255 g, 8.99 oz | 225 g, 4.94 oz |
* Approximate. Tx: Rx: standby = 1:1:8. Power save function ON. GPS OFF.
Frequency coverage (Unit: MHz) |
Version | Transmit | Receiver | Broadcast band |
---|---|---|---|---|
ID-50A #15 USA |
144~148, 430~450* | (A) 108~174, 375~479* (B) 137~174, 375~479* |
88.0~108.0 | |
(A) means A band, (B) means B band. Guaranteed Range: * 144~148, 440~450 MHz | ||||
Type of emission | F2D, F3E, F7W | |||
Mode | DV, FM, FM-N, WFM, AM, AM-N | |||
Number of memory channels | 500 memory channels, 4 call channels, 25 scan edges, 100 skip channels, 500 broadcast stations, 2500 repeater lists, 300 call signs, and 300 GPS memories |
|||
Frequency resolution | 5, 6.25, 8.33, 10, 12.5, 15, 20, 25, 30, 50, 100, 125 and 200 kHz | |||
Operating temperature range | –20℃ ~ +60℃, –4°F ~ +140°F | |||
Frequency stability | ±2.5 ppm (–20℃ ~ +60℃ on the basis of 25℃) | |||
Antenna impedance | 50 Ω (SMA) | |||
Power supply requirement |
Battery pack | 7.4 V DC (with BP-271/BP-272) | ||
Alkaline cells | 5.5 V DC (with BP-273) | |||
External DC | 10~16 V DC | |||
Current drain (at 7.4 V DC) |
Tx High | Less than 2.5 A | ||
Rx AF Max. | Less than 400 mA (FM, FM-N) (8 Ω), Less than 450 mA (DV) (8 Ω) |
|||
Dimensions (W×H×D) (projections not included) |
58.0 × 111.0 × 27.9 mm, 2.3 × 4.4 × 1.2 in (main unit)58.0 × 111.0 × 33.0 mm, 2.3 × 4.4 × 1.3 in (with BP-272) | |||
Weight (approx.) | 300 g, 10.6 oz (with BP-272 & antenna) |
Modulation system | DV | GMSK reactance modulation |
---|---|---|
FM, FM-N | FM reactance modulation | |
Output power | 5 W, 2.5 W, 1.0 W, 0.5 W, 0.1 W (High, Mid, Low2, Low1, S-low) |
|
Spurious emissions | Less than –60 dBc (High, Mid), Less than –13 dBm (Low2, Low1, S-low) |
|
Max. frequency deviation | Less than ±5.0/2.5 kHz (FM/FM-N) | |
Ext. Mic impedance | 2.2 kΩ |
Sensitivity | DV | Less than 0.2 μV (at 1% BER) | |
---|---|---|---|
FM, FM-N | Less than 0.18 μV (at 12 dB SINAD) | ||
Selectivity | More than 50 dB (DV, FM-N), More than 55 dB (FM) | ||
Spurious rejection | More than 60 dB | ||
Audio output power | Internal SP | More than 750 mW (8 Ω load) | |
External SP | More than 200 mW (8 Ω load) | ||
Receiver sensitivity (Except amateur bands) | |||
Frequency range (Unit: MHz) |
FM/FM-N/WFM (12 dB SINAD) |
AM/AM-N (10 dB S/N) |
|
BC band | 88.000~108.000 | Less than 1 μV (WFM) | - |
A band | 108.000~136.991 | - | Less than 1 μV |
137.000~142.000 | Less than 0.18 μV | Less than 1 μV | |
142.005~148.000 | Less than 0.18 μV | - | |
148.005~174.000 | Less than 0.32 μV | - | |
375.000~399.995 | Less than 0.5 μV | - | |
400.000~479.000 | Less than 0.32 μV | - | |
B band | 137.000~142.000 | Less than 0.18 μV | - |
142.005~148.000 | Less than 0.18 μV | - | |
148.005~174.000 | Less than 0.32 μV | - | |
375.000~399.995 | Less than 0.5 μV | - | |
400.000~479.000 | Less than 0.32 μV | - |
